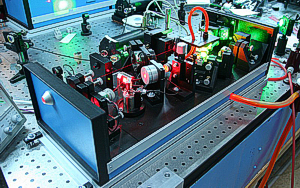

CW single-frequency ring Dye laser, model "DYE-SF-07"

CW single-frequency Dye laser

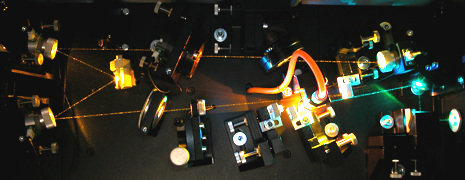

The horizontal orientation of the resonator plane allows compact arrangement of the cavity elements on a rigid and massive vibro-isolated base of DYE-SF-07, which ensures high stability of the generation parameters of Dye laser. Active frequency stabilisation performed through an external thermo-stabilised cavity is available in model DYE-SF-077; it provides short-time linewidth less than 100 kHz rms. The standard spectral range of the laser of 570-700 nm can be extended into the 285-350-nm range by using the Tekhnoscan's efficient resonant external frequency doubler FD-SF-07 .
