CW single-frequency ring Ti:Sapphire laser, model TIS-SF-07

Ti:Sapphire laser

TIS-SF-07 (2,5 MB)

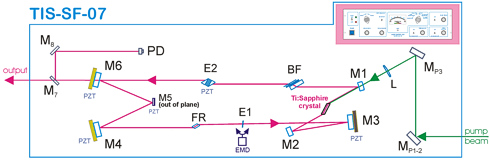

The optical scheme of the laser is configured in such a way that it provides for both ring and linear cavity operation with only a minimal re-alignment of the mirrors. Preliminary alignment of the selective and Faraday elements in the linear cavity makes the subsequent adjustments in the ring resonator much easier. Thoroughly-thought alignment system of TIS-SF-07 significantly speeds up and simplifies laser alignment to max out parameters after a change of the mirror set to switch to a different spectral range. Available wavelength tuning range of Ti:Sapphire laser is covered in TIS-SF-07 model by several optical sets for the following ranges: 695-780 nm, 750-850 nm and 850-950 nm. Easy access to any of the cavity elements provides additional comfort when switching to a different spectral range with a change of the mirror set.
