Hybrid tunable laser systems (Solid-state / Dye)

CW single-frequency ring laser, model "TIS/DYE-SF-07"
570-700/695-1050 nm, output > 1.5 W (10 W pump), linewidth 5 MHz (Ti:Sapphire) / 10 MHz (Dye), smooth scanning 5/6 GHz or 25/30 GHz

CW single-frequency ring laser, model "TIS/DYE-SF-077"
570-700/695-1050 nm, output > 1.5 W (10 W pump), linewidth < 100 kHz rms (Ti:Sapphire/Dye), frequency drift < 40 MHz/hour, smooth scanning 5/6 GHz or 18/20 GHz

TIS/DYE-SF-07 (1,1 MB)

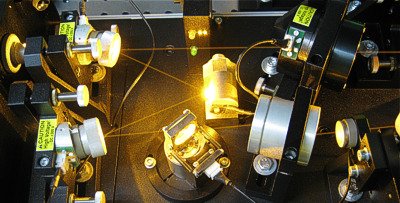

The single-frequency CW ring laser TIS/DYE-SF-07 is an original embodiment of new ideas on optimal combination of solid-state (Ti:Sapphire) and (liquid) Dye lasers in one single unit. Switching of TIS/DYE-SF-07 from the Ti:Sapphire to the Dye laser operation and vice versa is performed by exchange of some cavity elements in which the majority of alignment controls, part of optical elements, and the electronic control unit remain the same for both lasers.
